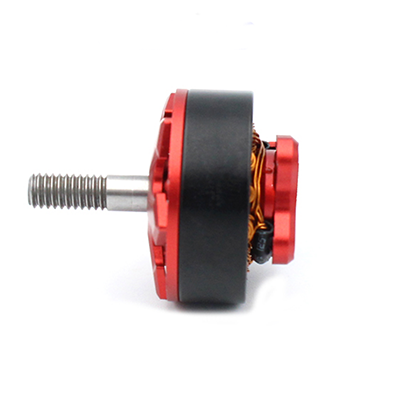

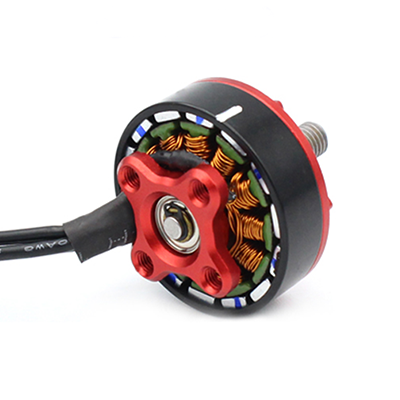

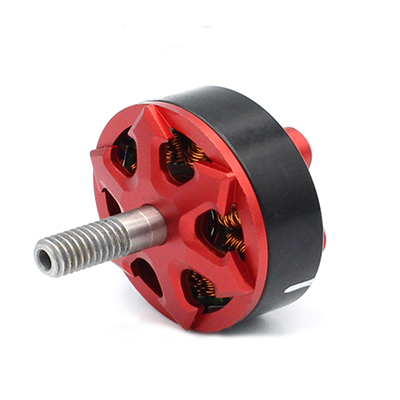

D2306 2306 DC brushless motor
D2306 2306 DC brushless motor

D2306 2306 DC brushless motor


D2306 D.jpg


Item Name: Shu 2306



Specification:

KV.....................................................................................2500KV

Configu ration.....................................................................NP

Stator Diameter.................................................................23.0mm

Stator Length.....................................................................6.0mm

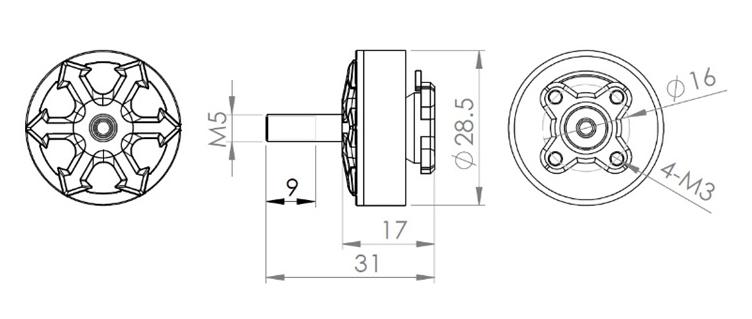

Motor Dimensions(Dia.*Len)...............................................Φ28.5×17.0mm

Weight (g).........................................................................33.59g

No.of Cells(Lipo).................................................................3-4S

Max Continuous current(A)..................................................44.1A

Max Continuous Power(W)..................................................705.6W

Internal resistance..............................................................0.06



KV...................................................................................2800KV

Configu ration..........................................................................NP

Stator Diameter.................................................................23.0mm

Stator Length......................................................................6.0mm

Motor Dimensions(Dia.*Len).....................................Φ28.5×17.0mm

Weight (g)............................................................................33.59g

No.of Cells(Lipo).......................................................................3-4S

Max Continuous current(A).......................................................42.0A

Max Continuous Power(W).....................................................672.0W

Internal resistance....................................................................0.05
