TR-13F-19120 4.5V 11500rpm brush motor toy motor
Motor features:
low noise
Long motor life
High precision
Model: TR-13F-19120
Voltage: 1.0-6.0V
Weight: 17.0g
Motor Outline:
CONDITION @ 4.5V | TYPE | VALUE | TOLERANCE |
NO LOAD | SPEED (rpm) | 11500 | ±15% |
CURRENT (A) | 0.06 | 0.08MAX | |
AT MAXIMUM EFFICIENCY | SPEED (rpm) | 9901 | ±15% |
CURRENT (A) | 0.37 | 0.45MAX | |
TORQUE (mN.m) | 1.09 | 0.87MIN | |
TORQUE (g.cm) | 11.12 | 8.9MIN | |
OUTPUT (W) | 1.13 | 0.9MIN | |
EEF (%) | 67.58 | 54.1MIN | |
STALL | TORQUE (mN.m) | 7.84 | 6.27MIN |
TORQUE (g.cm) | 80 | 64MIN | |
CURRENT (A) | 2.3 | 2.76MAX |

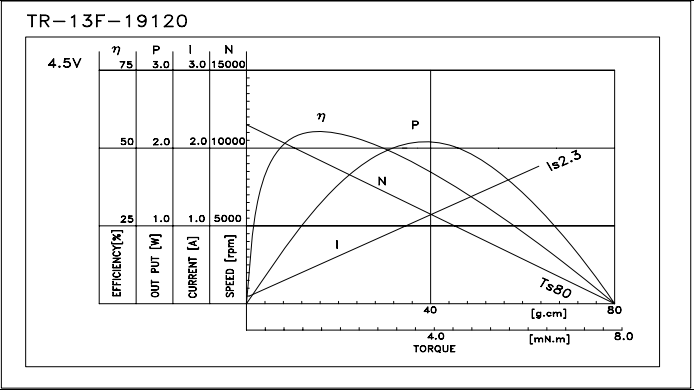

Motor characteristics curve:
