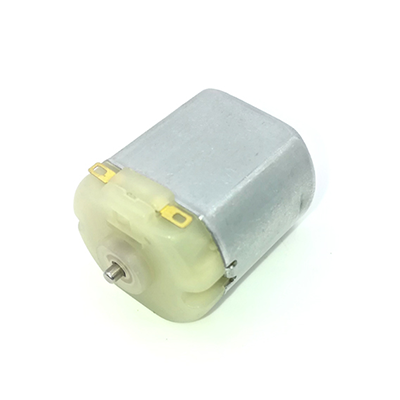

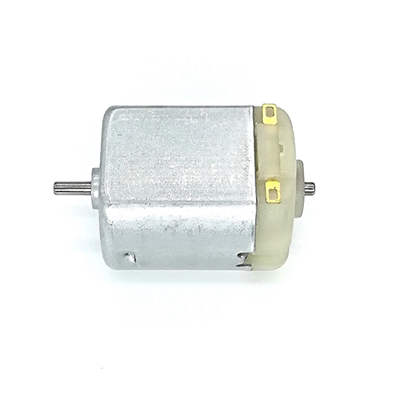

TF-26SAC-2485 6V 16000rpm brush motor
TF-26SAC-2485 6V 16000rpm brush motor

TF-26SAC-2485 6V 16000rpm brush motor


TF-26SAC-2485 6V 16000rpm brush motor

Motor features:

low noise

Long motor life

High precision

Model:  TF-26SAC-2485

Voltage: 1.5-6.0V

Weight:  28g

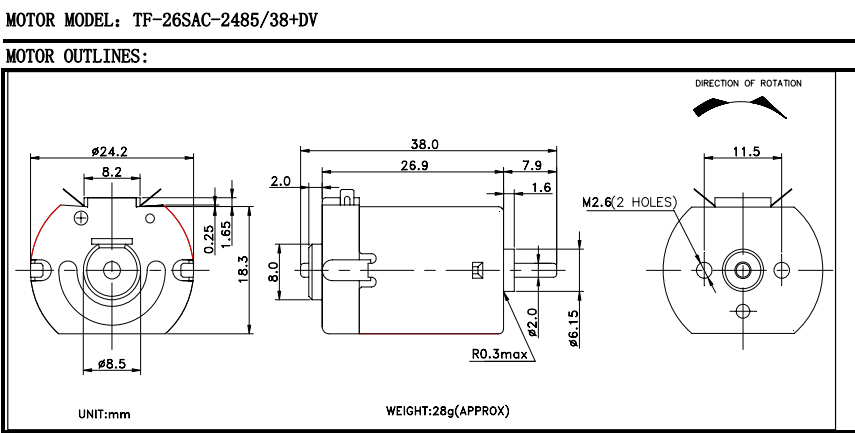

motor drawing:






CONDITION @ 6V

TYPE

VALUE

TOLERANCE

NO LOAD

SPEED (rpm)

16000

±15%

CURRENT (A)

0.22

0.29MAX

AT MAXIMUM
EFFICIENCY

SPEED (rpm)

13179

±15%

CURRENT (A)

1.03

1.23MAX

TORQUE (mN.m)

2.42

1.94MIN

TORQUE (g.cm)

24.69

19.7MIN

OUTPUT (W)

3.34

2.67MIN

EEF (%)

54.12

43.3MIN

STALL

TORQUE (mN.m)

13.72

11MIN

TORQUE (g.cm)

140

112MIN

CURRENT (A)

4.8

5.76MAX

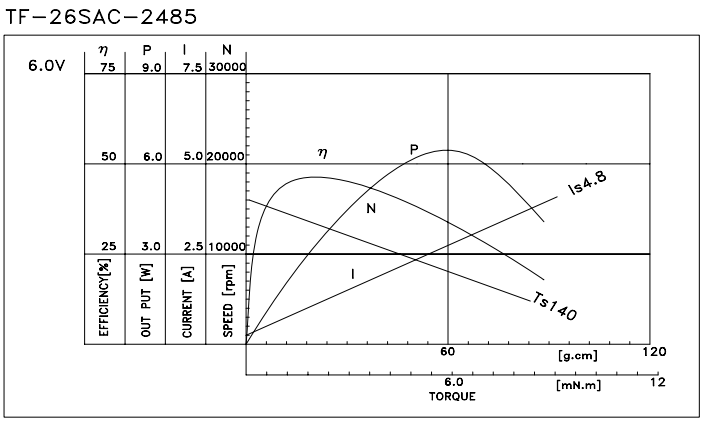

Motor characteristics curve:
