Model: | GBM5208H-200T | No load current (A): | 0.066 |
voltage range(Lipo): | 3-6S | Inner diameter of the shaft (mm): | 12.6 |
Turns: | 200T | Shaft diameter (mm): | 15 |
Max. Current (A): | 10 | Maximum power (W): | 218 |

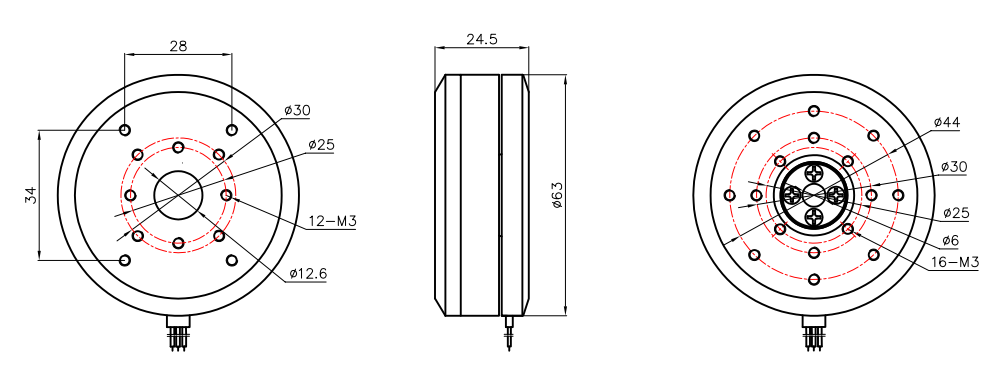

Motor size : | 63mm(OD)*24.5mm | Wire length (mm): | Black JR connector silicone wire 530mm |
Stator size : | 53mm(OD)*8mm | Motor structure: | 12N14P |
KV Value: | 25 | Stall torque N.M/V: | 0.368/3S |

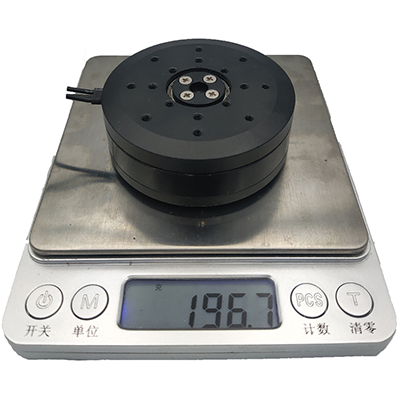

Internal resistance of coil Ω: | 15.5 | Motor weight including wire : | 196.7g |
