Model: | GBM8108H-90T | No load current (A): | 0.089 |
Voltage range(Lipo): | 3-8S | Inner diameter of the shaft (mm): | 12.6 |
Turns: | 90T | Shaft diameter (mm): | 15 |
Maximum current (A): | 12 | Maxmum Power(W): | 348 |

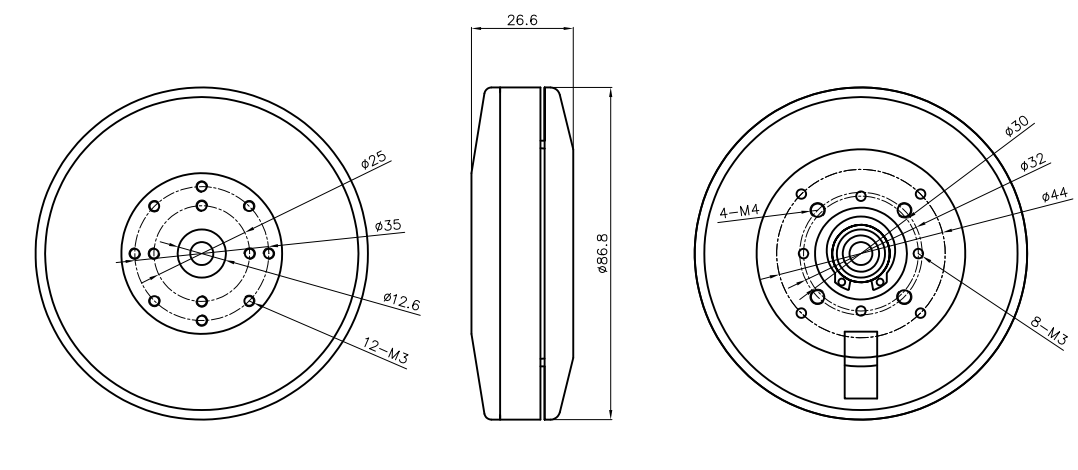

Motor Size: | 86.8mm(OD)*26.5mm | Wire length (mm): | Black JR connector twisted wire 600mm |
Stator Size: | 81mm(OD)*8mm | Motor structure: | 36N42P |
KV Value: | 17 | Stall torque N.M/V: | 0.85/3S |

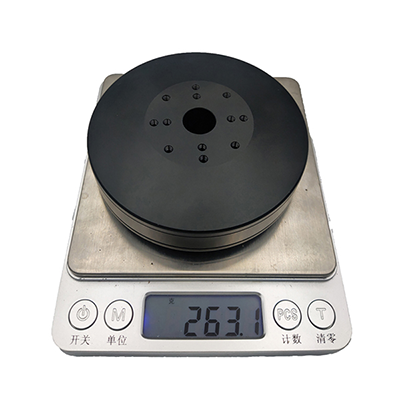

Internal resistance of coil Ω: | 8.7 | Motor weight including wire: | 263.1g |
