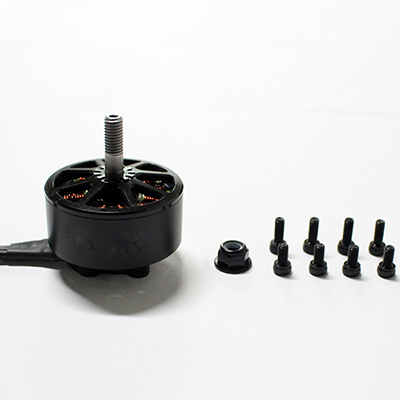

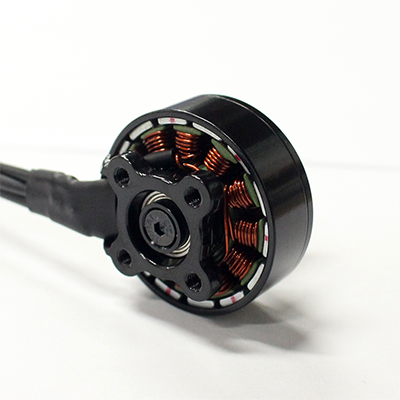

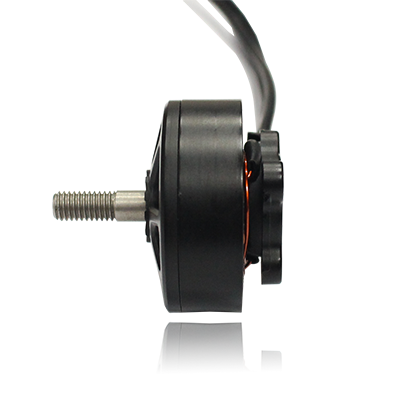

| TM3115 Specifications | ||||||
| Testltem | KV620 | Idle Current(10V) | 1.02A | |||

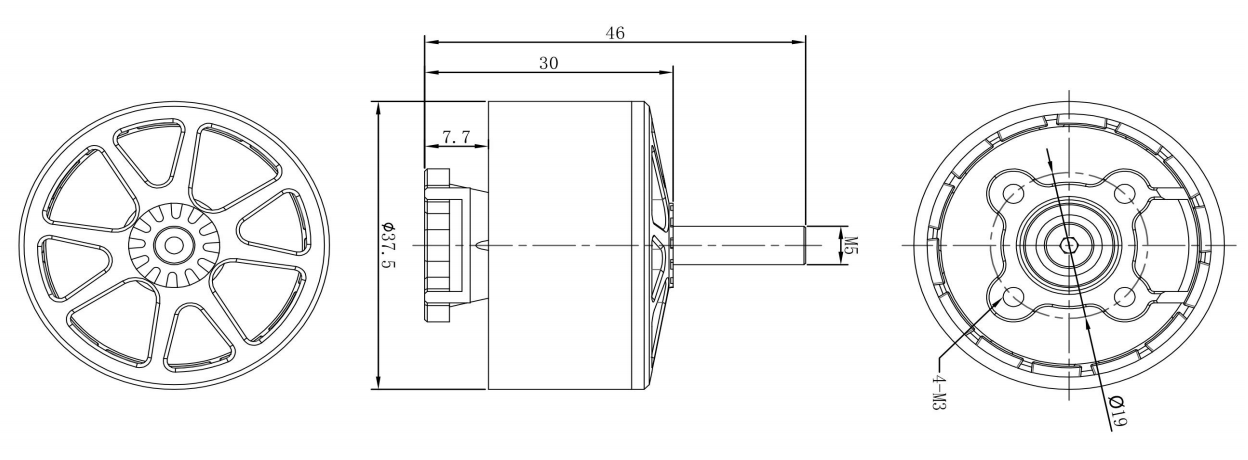

| Motor Dimensions | 41.5*46mm | Internal Resistance | 65mΩ | |||
| Framework | 12N14P | No.of cells | 3-6S | |||
| Bearing Shaft | 5mm | Propeller | 9”10”11” | |||
| Lead | 16#AWG 250mm | Peak Current(6S) | 43.2A | |||
| Weight | 132g(W/0 Silicone Wire) | Max.Power(6S) | 1036.8W | |||
| LOAD TEST DATA | ||||||
| item N | Propeller | VALTAGE (V) | Current (A) | Trust (g) | POWER(W) | Trust efficincy (G/W) |
| TM3115-620KV | GF9045*3葉槳 | 24.0V | 5 | 756 | 120 | 6.30 |
| 24.0V | 10 | 1344 | 240 | 5.60 | ||
| 24.0V | 15 | 1785 | 360 | 4.96 | ||
| 24.0V | 20 | 2184 | 480 | 4.55 | ||
| 24.0V | 23 | 2352 | 552 | 4.26 | ||
| GF1050*3葉槳 | 24.0V | 5 | 850 | 120 | 7.08 | |
| 24.0V | 10 | 1417 | 240 | 5.90 | ||
| 24.0V | 15 | 1932 | 360 | 5.37 | ||
| 24.0V | 20 | 2342 | 480 | 4.88 | ||
| 24.0V | 33 | 3171 | 792 | 4.00 | ||
| GF1170*3葉槳 | 24.0V | 5 | 935 | 120 | 7.79 | |
| 24.0V | 10 | 1554 | 240 | 6.48 | ||
| 24.0V | 15 | 2027 | 360 | 5.63 | ||
| 24.0V | 20 | 2468 | 480 | 5.14 | ||
| 24.0V | 43.2 | 3969 | 1036.8 | 3.83 | ||
