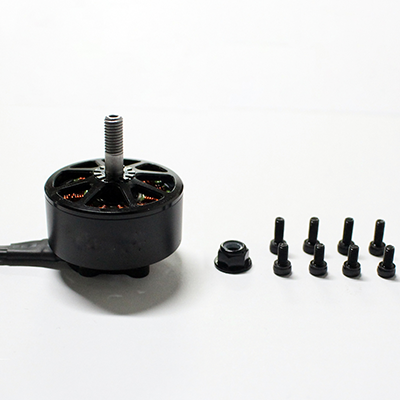

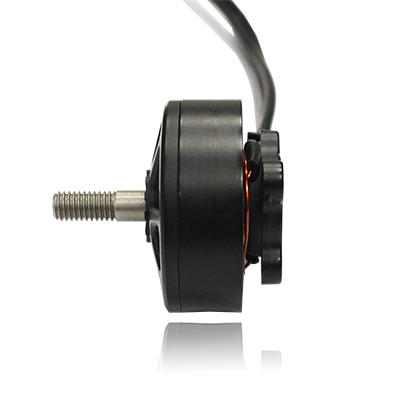

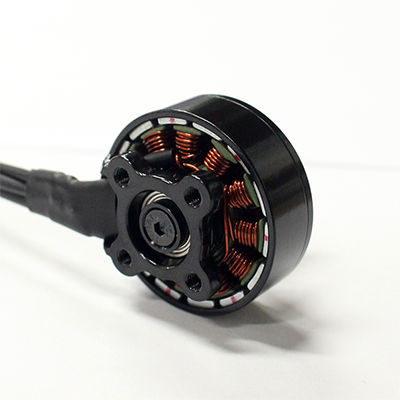

TM2810 Specifications | ||||||
Test ltem | KV900 | Idle Current(10V) | 0.8A | |||

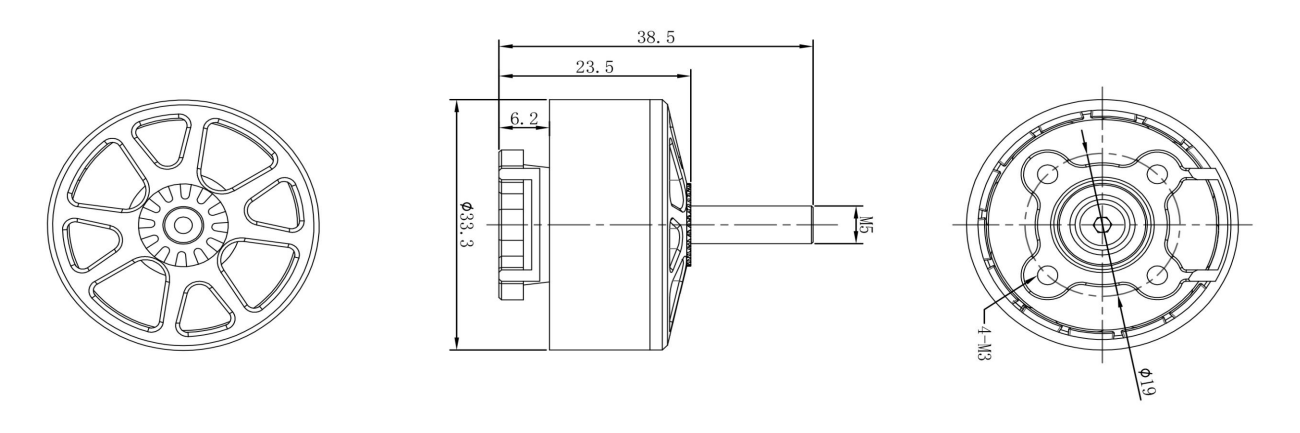

Motor Dimensions | 33.3*38.5mm | Internal Resistance | 88mΩ | |||
Framework | 12N14P | No.of cells | 3-6S | |||
Bearing Shaft | 5mm | Propeller | 7”-8”-9” | |||
Lead | 18#AWG 250mm | Peak Current(6S) | 44.6A | |||
Weight | 65g(W/0 Silicone Wire) | Max.Power(6S) | 1070W | |||
LOAD TEST DATA | ||||||
item N | Propeller | VALTAGE (V) | Current (A) | Trust (g) | POWER(W) | Trust efficincy (G/W) |
TM2810-900KV | GF8040*3葉槳 | 24.0V | 5 | 735 | 120 | 6.13 |
24.0V | 10 | 1218 | 240 | 5.08 | ||
24.0V | 15 | 1554 | 360 | 4.32 | ||
24.0V | 20 | 1870 | 480 | 3.90 | ||
24.0V | 37.7 | 2468 | 905 | 2.73 | ||
TM2810-900KV | GF9045*3葉槳 | 24.0V | 5 | 740 | 120 | 6.17 |
24.0V | 10 | 1228 | 240 | 5.12 | ||
24.0V | 15 | 1565 | 360 | 4.35 | ||
24.0V | 20 | 1880 | 480 | 3.92 | ||
24.0V | 44.6 | 2657 | 1070 | 2.48 |
