Model:GBM3506H-130T
Specification | |||
Model: | GBM3506H-130T | No load current (A): | 0.069 |
Voltage range (Lipo): | 2-4S | Inner diameter of shaft (mm): | 6.0 |
Number of coil turns : | 130T | The diameter of the shaft (mm): | 8.0 |
Maximum current (A): | 6 | maximum power (W): | 87 |

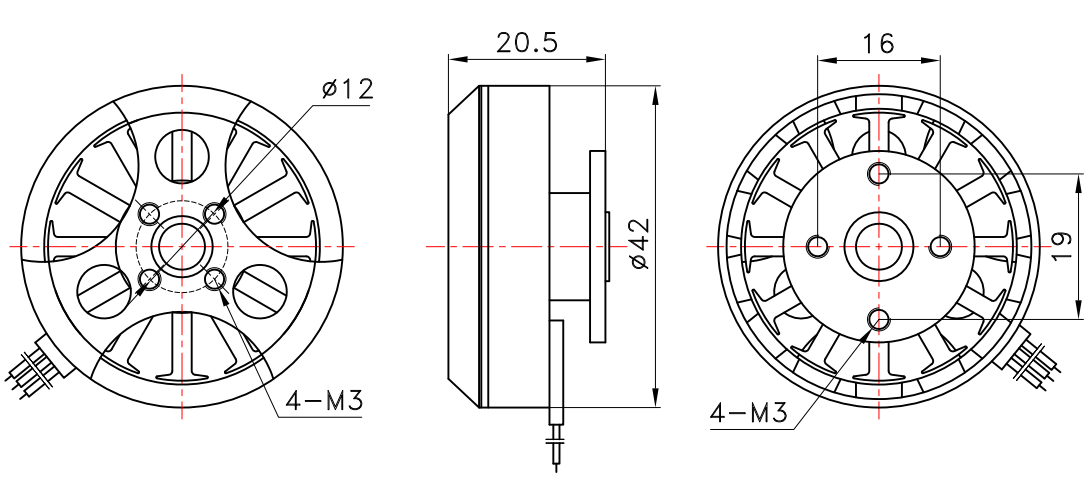

Motor size : | 42mm(OD)*20.5mm | Wire length (mm): | Black silicone wire 350mm |
Stator size : | 35.1mm(OD)*6mm | Motor structure | 12N14P |
KV value: | 75 | Stall torque N.M/V | 0.13/3S |
Internal resistance of coil Ω: | 12.5 | Motor weight including wire | 61.6g |
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
Subject : GBM3506H-130T gimbal motor
