Model:GBM2804H-100T
specification | |||
Model: | GBM2804H-100T | no load current (A): | 0.099 |
voltage range(Lipo): | 2-4S | inner diameter of shaft(mm): | 5.0 |
number of coil turns: | 100T | shaft diameter (mm): | 7.0 |
maximum current (A): | 5 | maximum power(W): | 72.5 |

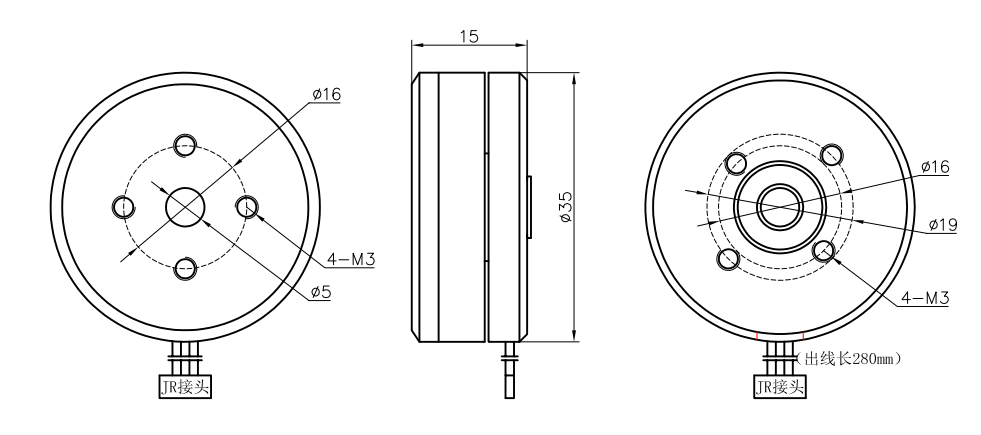

motor size: | 35mm(OD)*15mm | wire length (mm): | Black JR wire 300mm |
stator size: | 28mm(OD)*4mm | motor structure: | 12N14P |
KV value: | 147 | stall torque N.M/V: | 0.065/3S |

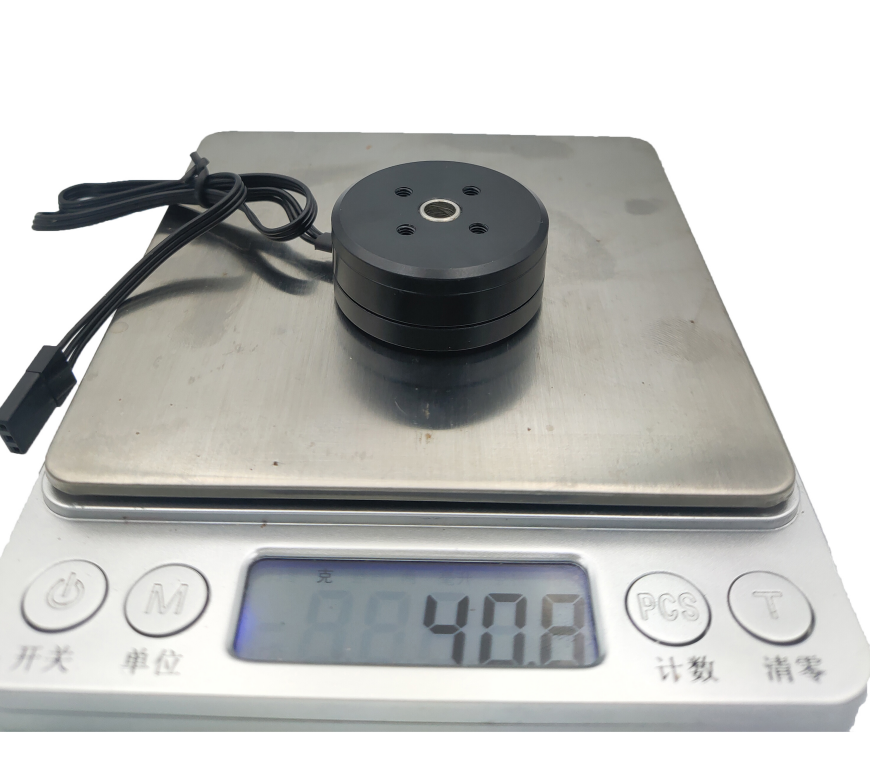

internal resistance of coil Ω: | 11.2 | motor weight including wire: | 40.8g |
