BE2826 2826 DC brushless motor
BE2826 2826 DC brushless motor

BE2826 2826 DC brushless motor


BE2826 940KV 1060KV 770KV Brushless Motor


Specifications:


Item name:BE2826
KV:940KV
Pull: 1580g
Motor size: Φ35×48

Battery: 3-6s Lipo

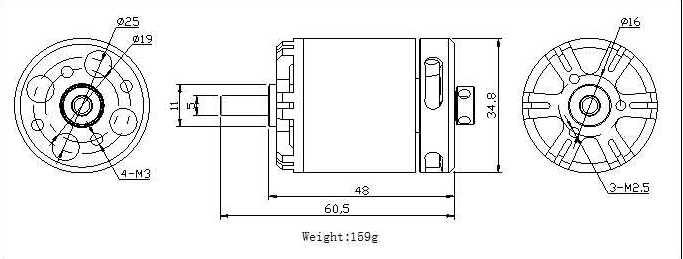

BE2826 D.jpg


Specifications:
KV..............................................................................................................940
Configu ration....................................................................................NP
Stator Diameter....................................................................................28mm
Stator Length..........................................................................................6mm
Shaft Diameter.......................................................................................5mm
Motor Dimensions(Dia.*Len)...............................................Φ35×48mm
Weight (g)...................................................................................................159g
No.of Cells(Lipo).....................................................................................3-6S
Max Continuous current(A)............................................................24.5A
Max Continuous Power(W)...........................................................543.9W
Internal resistance..............................................................................0.021ohm



Specifications:
KV..............................................................................................................1060
Configu ration....................................................................................NP
Stator Diameter....................................................................................28mm
Stator Length..........................................................................................6mm
Shaft Diameter.......................................................................................5mm
Motor Dimensions(Dia.*Len)...............................................Φ35×48mm
Weight (g)...................................................................................................159g
No.of Cells(Lipo).....................................................................................3-5S
Max Continuous current(A)............................................................44.2A
Max Continuous Power(W)...........................................................817.7W
Internal resistance..............................................................................0.018ohm



Specifications:

KV..............................................................................................................770
Configu ration....................................................................................NP
Stator Diameter....................................................................................28mm
Stator Length..........................................................................................6mm
Shaft Diameter.......................................................................................5mm
Motor Dimensions(Dia.*Len)...............................................Φ35×48mm
Weight (g)...................................................................................................159g
No.of Cells(Lipo).....................................................................................3-6S
Max Continuous current(A)............................................................37.2A
Max Continuous Power(W)...........................................................825.8W
Internal resistance..............................................................................0.034ohm
