BE2217 2217 DC brushless motor
BE2217 2217 DC brushless motor

BE2217 2217 DC brushless motor

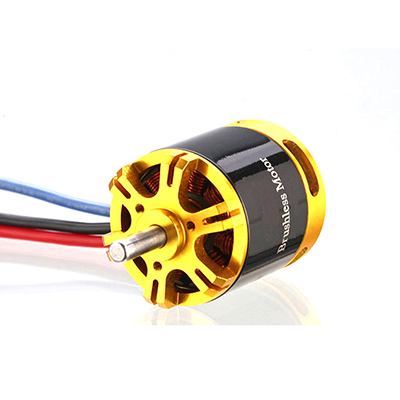

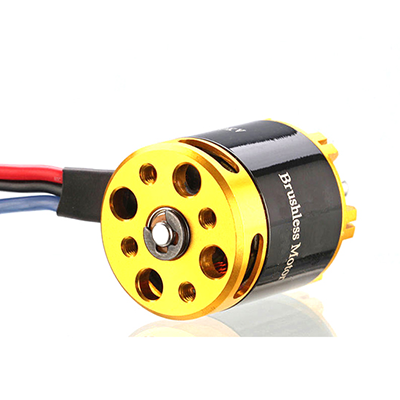

BE2217 2217 1200KV 1500KV Long Shaft Brushless Motor


Specifications:


Item name:BE2217 long shaft
KV:1500KV
Pull: 1610g
Motor size: Φ28×30

Battery: 3-4s Lipo

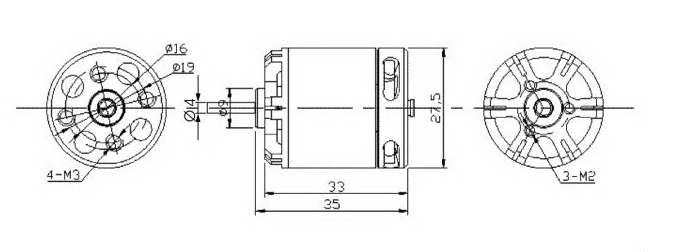

BE2217 D.jpg


Specifications:
KV..............................................................................................................1500
Configu ration....................................................................................NP
Stator Diameter....................................................................................22mm
Stator Length..........................................................................................17mm
Shaft Diameter.......................................................................................4.0mm
Motor Dimensions(Dia.*Len)...............................................Φ28×36mm
Weight (g)...................................................................................................74g
No.of Cells(Lipo).....................................................................................3-4S
Max Continuous current(A)............................................................40A
Max Continuous Power(W)...........................................................592W
Internal resistance..............................................................................0.041ohm


Specifications:
KV..............................................................................................................1200
Configu ration....................................................................................NP
Stator Diameter....................................................................................22mm
Stator Length..........................................................................................17mm
Shaft Diameter.......................................................................................4.0mm
Motor Dimensions(Dia.*Len)...............................................Φ28×36mm
Weight (g)...................................................................................................74g
No.of Cells(Lipo).....................................................................................3-4S
Max Continuous current(A)............................................................31A
Max Continuous Power(W)...........................................................458W
Internal resistance..............................................................................0.068ohm
