BE2814 2814 DC brushless motor
BE2814 2814 DC brushless motor

BE2814 2814 DC brushless motor

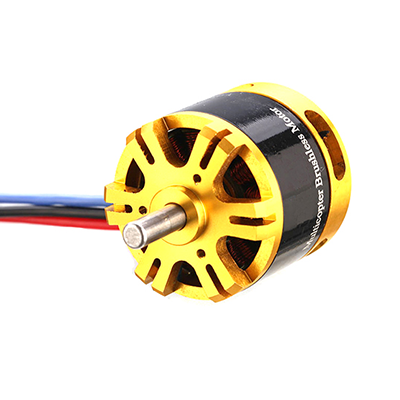

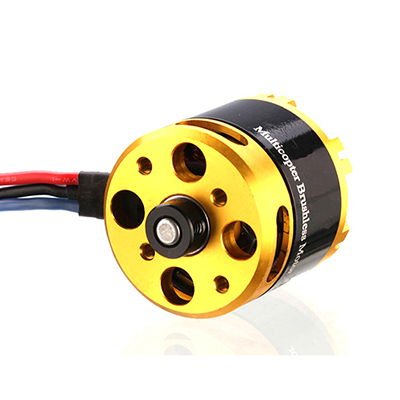

BE2814 2814 910KV 1280KV 1400KV Long Shaft Brushless Motor

Specifications:


Item name:BE2814 long shaft
KV:910KV
Pull: 1990g
Motor size: Φ35×36

Battery: 3-6s Lipo

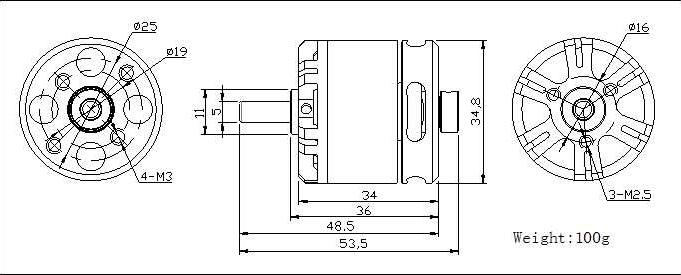

BE2814 D.jpg


Specifications:
KV..............................................................................................................910
Configu ration....................................................................................NP
Stator Diameter....................................................................................28mm
Stator Length..........................................................................................14mm
Shaft Diameter.......................................................................................5.0mm
Motor Dimensions(Dia.*Len)...............................................Φ35×36mm
Weight (g)...................................................................................................100g
No.of Cells(Lipo).....................................................................................3-6S
Max Continuous current(A)............................................................34.2A
Max Continuous Power(W)...........................................................759W
Internal resistance..............................................................................0.061ohm


Specifications:
KV..............................................................................................................1280
Configu ration....................................................................................NP
Stator Diameter....................................................................................28mm
Stator Length..........................................................................................14mm
Shaft Diameter.......................................................................................5.0mm
Motor Dimensions(Dia.*Len)...............................................Φ35×36mm
Weight (g)...................................................................................................100g
No.of Cells(Lipo).....................................................................................3-6S
Max Continuous current(A)............................................................38.5A
Max Continuous Power(W)...........................................................569W
Internal resistance..............................................................................0.022ohm


Specifications:
KV..............................................................................................................1400
Configu ration....................................................................................NP
Stator Diameter....................................................................................28mm
Stator Length..........................................................................................14mm
Shaft Diameter.......................................................................................5.0mm
Motor Dimensions(Dia.*Len)...............................................Φ35×36mm
Weight (g)...................................................................................................100g
No.of Cells(Lipo).....................................................................................3-6S
Max Continuous current(A)............................................................42.8A
Max Continuous Power(W)...........................................................633W
Internal resistance..............................................................................0.015ohm
