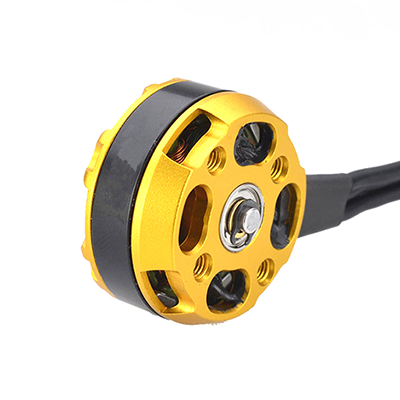

BE2204 2400KV 2204 brushless motor
Specifications:
Battery: 2-3 Lipo
Specifications:
KV..............................................................................................................2400
Configu ration....................................................................................12N14P
Stator Diameter....................................................................................22mm
Stator Length..........................................................................................4mm
Shaft Diameter.....................................................................3.0mm, outside:2.0mm

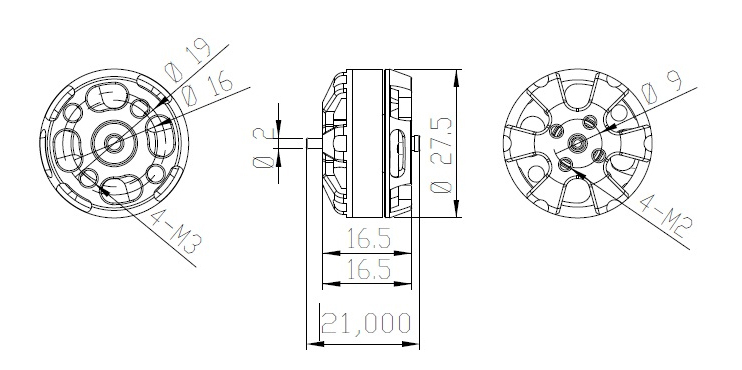

Motor Dimensions(Dia.*Len)...............................................Φ27×16.5mm
Weight (g)...................................................................................................23g
No.of Cells(Lipo).....................................................................................2-3S
Max Continuous current(A)............................................................9.4A
Continuous Power(W)...........................................................69.6W
Internal resistance..............................................................................0.013ohm
