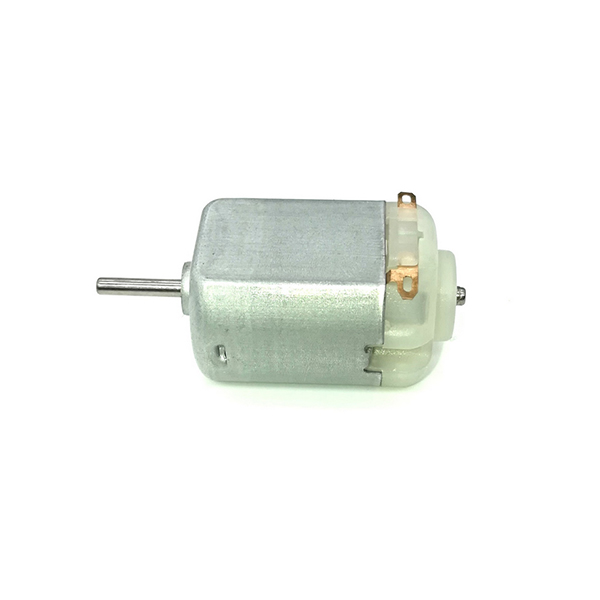

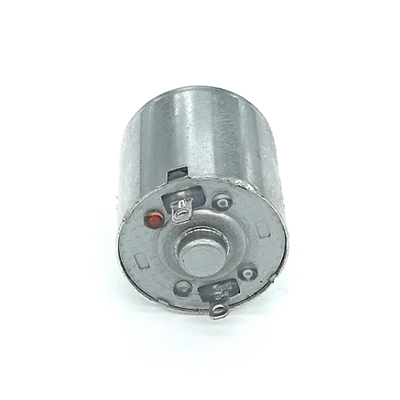

TR-02F-12180 8.4V 24000rpm 有刷電機
馬達(dá)特點:
低噪音
馬達(dá)壽命長
高精度
型號: TR-02F-12180
電壓: 1.0-9.0V

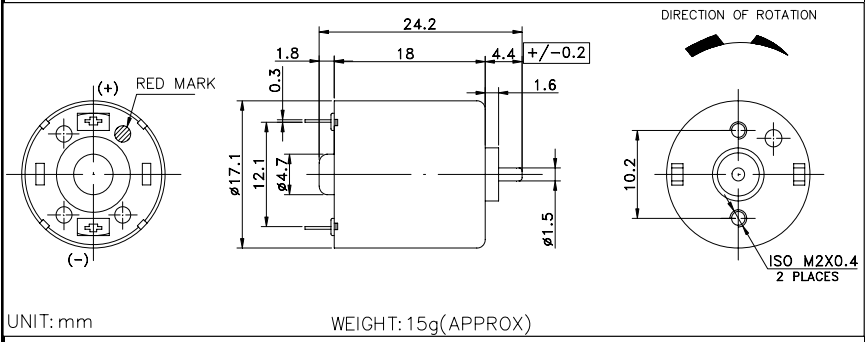

重量: 15.0g

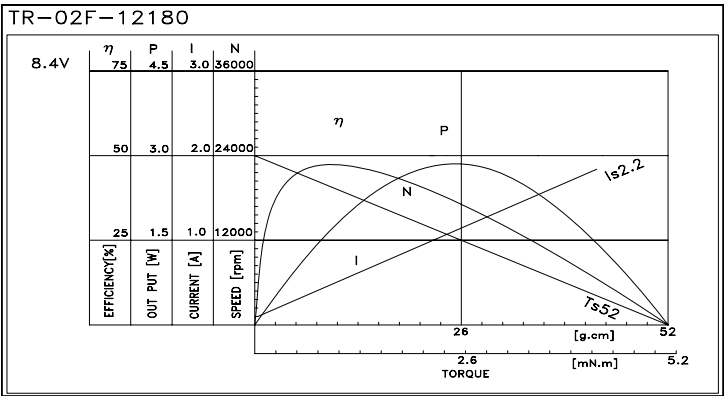

CONDITION @ 8.4V | TYPE類型 | VALUE數(shù)值 | TOLERANCE |
NO LOAD空載 | SPEED速度 (rpm) | 24000 | ±15% |
CURRENT電流 (A) | 0.08 | 0.1MAX | |
AT MAXIMUM EFFICIENCY 最大效率 | SPEED速度 (rpm) | 20156 | ±15% |
CURRENT電流 (A) | 0.42 | 0.5MAX | |
TORQUE 扭力(mN.m) | 0.82 | 0.65MIN | |
TORQUE扭力 (g.cm) | 8.33 | 6.66MIN | |
OUTPUT輸出功率 (W) | 1.72 | 1.38MIN | |
EEF 效率(%) | 48.85 | 39.1MIN | |
STALL堵轉(zhuǎn) | TORQUE扭力 (mN.m) | 5.10 | 4.08MIN |
TORQUE扭力 (g.cm) | 52 | 41.6MIN | |
CURRENT電流 (A) | 2.2 | 2.64MAX |
