TF-N20F-10140 7.4V 31000rpm 有刷電機
馬達特點:
低噪音
馬達壽命長
高精度
型號: TF-N20F-10140
電壓: 1.5-9.0V
重量: 5.0g (0.123 oz)

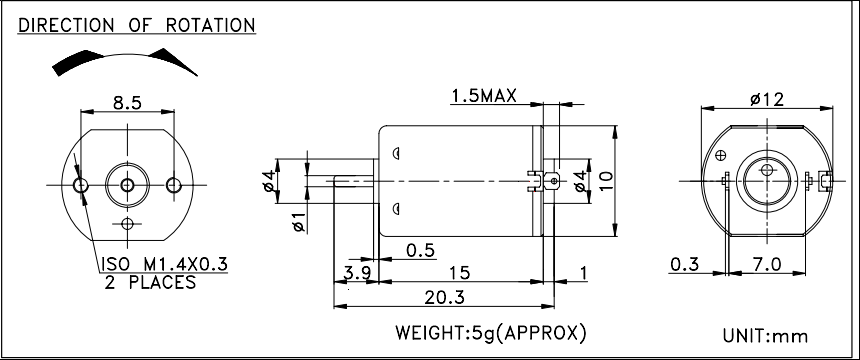

馬達尺寸:

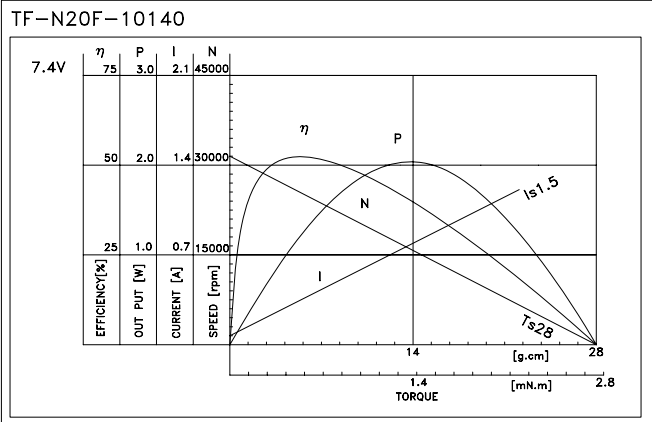

CONDITION @ 7.4V | TYPE類型 | VALUE數值 | TOLERANCE公差 |
NO LOAD空載 | SPEED 速度 | 31000 | ±15% |
CURRENT電流 (A) | 0.05 | 0.07MAX | |
AT MAXIMUM EFFICIENCY 最大效率 | SPEED 速度 | 26214 | ±15% |
CURRENT 電流(A) | 0.27 | 0.33MAX | |
TORQUE扭力 (mN.m) | 0.42 | 0.34MIN | |
TORQUE扭力 (g.cm) | 4.32 | 3.46MIN | |
OUTPUT輸出功率 (W) | 1.16 | 0.93MIN | |
EEF效率 (%) | 57.35 | 45.9MIN | |
STALL堵轉 | TORQUE扭力 (mN.m) | 2.74 | 2.2MIN |
TORQUE扭力 (g.cm) | 28 | 22.4MIN | |
CURRENT電流 (A) | 1.5 | 1.8MAX |
