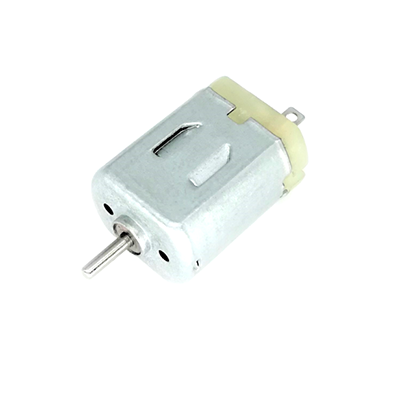

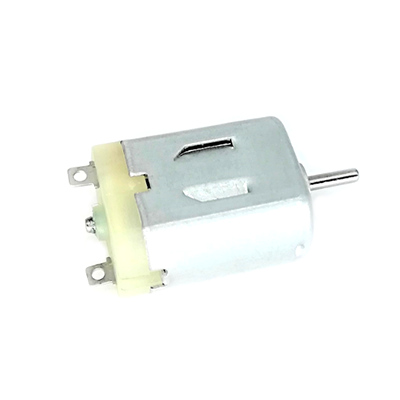

TF-10S-1665 3V 22000rpm 有刷電機 玩具馬達
馬達特點:
低噪音
馬達壽命長
高精度
型號: TF-10S-1665
電壓: 1.5-4.5V
重量:8.0g

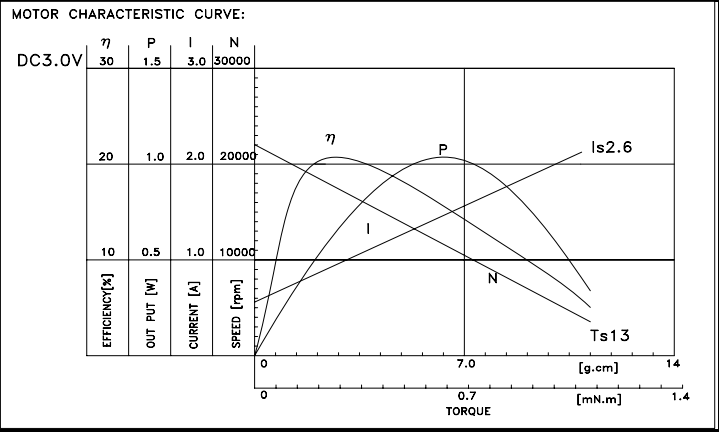

CONDITION @ 3.0V | TYPE類型 | VALUE數(shù)值 | TOLERANCE公差 |
NO LOAD空載 | SPEED速度 (rpm) | 22000 | ±15% |
CURRENT電流 (A) | 0.3 | 0.39MAX | |
AT MAXIMUM EFFICIENCY 最大效率 | SPEED 速度(rpm) | 16422 | ±15% |
CURRENT 電流(A) | 0.88 | 1.06MAX | |
TORQUE扭力 (mN.m) | 0.75 | 0.6MIN | |
TORQUE扭力 (g.cm) | 7.61 | 6.09MIN | |
OUTPUT輸出功率 (W) | 1.28 | 1.02MIN | |
EEF 效率(%) | 48.35 | 38.7MIN | |
STALL堵轉(zhuǎn) | TORQUE扭力 (mN.m) | 2.94 | 2.35MIN |
TORQUE扭力 (g.cm) | 30 | 24MIN | |
CURRENT 電流(A) | 2.6 | 3.12MAX |
