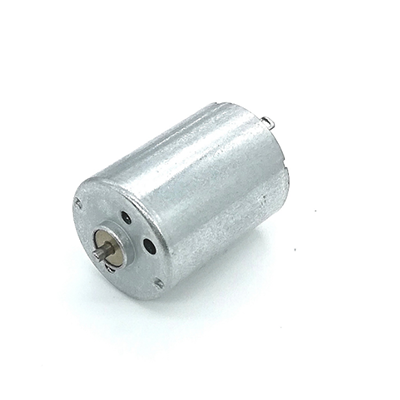

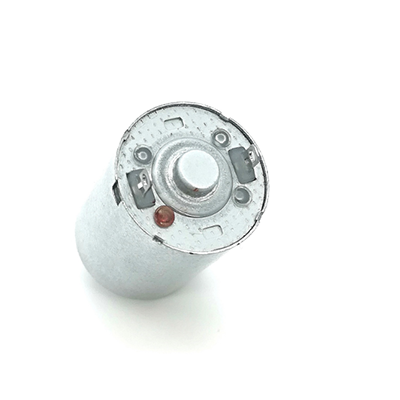

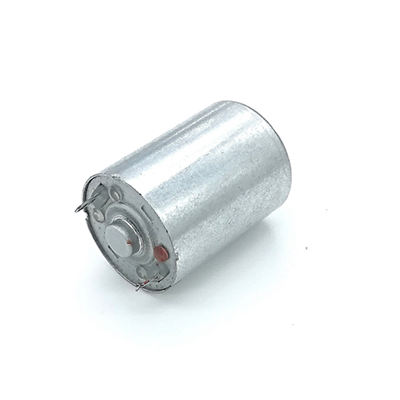

TR-13F-19120 4.5V 11500rpm 有刷電機 玩具馬達
馬達特點:
低噪音
馬達壽命長
高精度
型號: TR-13F-19120
電壓: 1.0-6.0V
重量: 17.0g

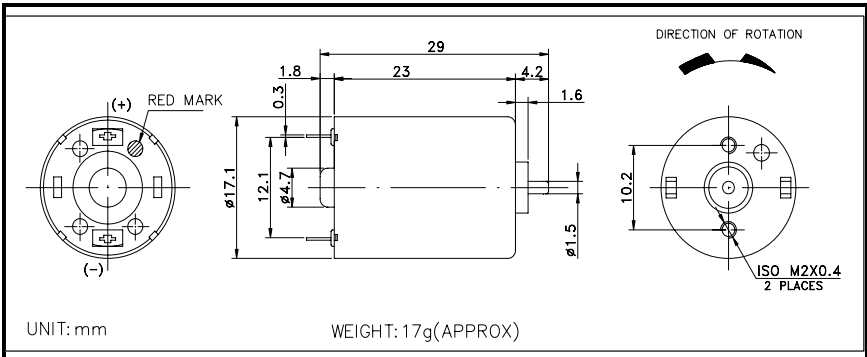

馬達尺寸:
CONDITION @ 4.5V | TYPE類型 | VALUE數值 | TOLERANCE公差 |
NO LOAD空載 | SPEED速度 (rpm) | 11500 | ±15% |
CURRENT電流(A) | 0.06 | 0.08MAX | |
AT MAXIMUM EFFICIENCY 最大效率 | SPEED 速度 | 9901 | ±15% |
CURRENT電流 (A) | 0.37 | 0.45MAX | |
TORQUE扭力 (mN.m) | 1.09 | 0.87MIN | |
TORQUE 扭力(g.cm) | 11.12 | 8.9MIN | |
OUTPUT 輸出功率(W) | 1.13 | 0.9MIN | |
EEF效率 (%) | 67.58 | 54.1MIN | |
STALL堵轉 | TORQUE 扭力(mN.m) | 7.84 | 6.27MIN |
TORQUE扭力 (g.cm) | 80 | 64MIN | |
CURRENT電流 (A) | 2.3 | 2.76MAX |

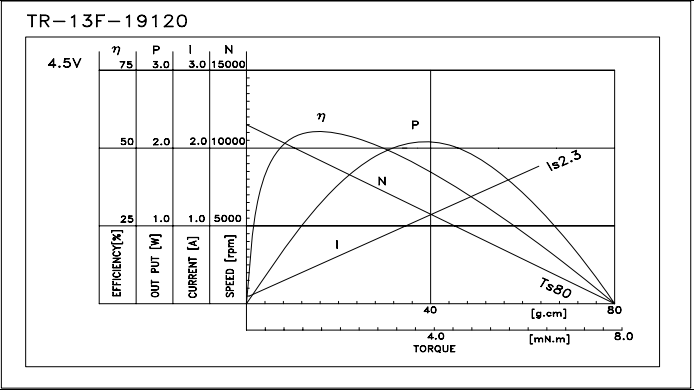

電機曲線圖:
