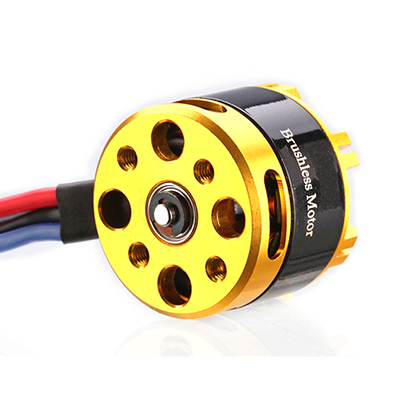

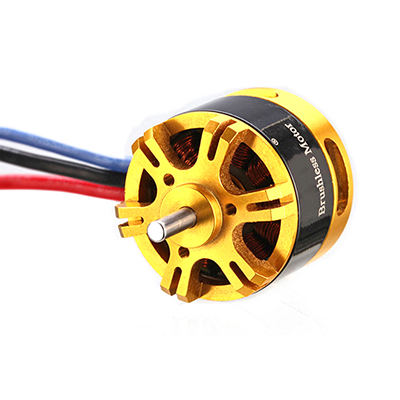

BE2208 2208 1070KV 1400KV 2600KV 無刷直流電機
規格:
產品名稱:BE2208長軸
KV:1070KV
拉力:1025g
電機尺寸:Φ28×26
電池:2-5s lipo
規格:
KV .................................................... ................................................ 1070
配置................................................ .................................... NP
定子直徑................................................ .................................... 22mm
定子長度................................................ .......................................... 8mm
軸直徑................................................ ....................................... 3mm

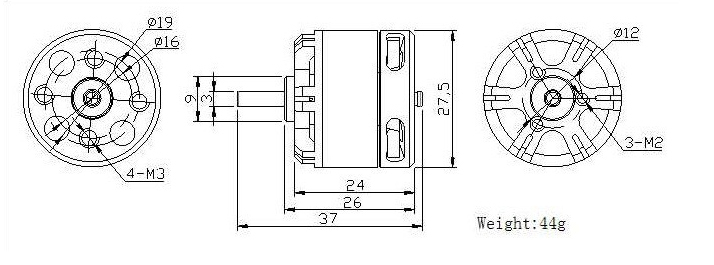

電機尺寸(直徑*長度).................................... .....Φ28×26毫米
重量.................................... ................................................... ... 44克
電池數量(Lipo)..................................... .......................................... 2-5S
最大持續電流(A).............................................. ....... 19A
最大連續功率(W)..................................................... ............... 351W
規格:
KV .................................................... ............................................... 1400
配置................................................ .................................... NP
定子直徑................................................ .................................... 22mm
定子長度................................................ .......................................... 8mm
軸直徑................................................ ....................................... 3mm
電機尺寸(直徑*長度).................................... .....Φ28×26毫米
重量.................................... ................................................... ... 44克
電池數量(Lipo)..................................... .......................................... 2-4S
最大持續電流(A).............................................. ....... 26A
最大連續功率(W)..................................................... ...... 384瓦
規格:
KV .................................................... ................................. ...... 2600
配置................................................ .................................... NP
定子直徑................................................ .................................... 22mm
定子長度................................................ .......................................... 8mm
軸直徑................................................ ....................................... 3mm
電機尺寸(直徑*長度).................................... .....Φ28×26毫米
重量.................................... ................................................... ... 44克
電池數量(Lipo)..................................... ................................................... 2-3S
最大持續電流(A).............................................. ................ 43.1A
最大連續功率(W)..................................................... ...... 478瓦
內部電阻................................................ .................................... 0.044歐姆
