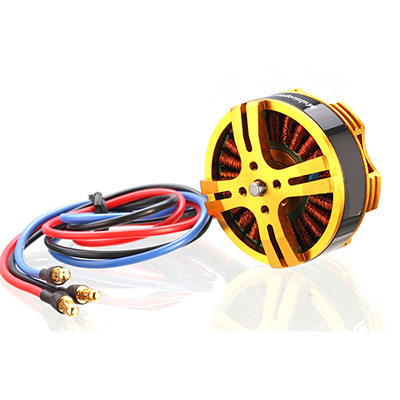

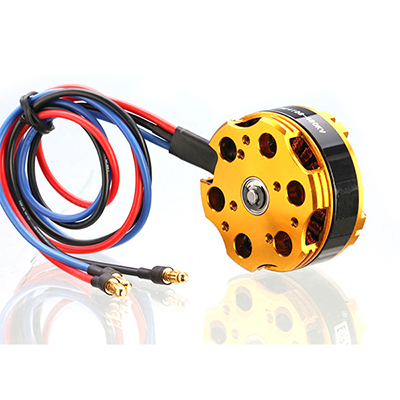

BE4108 4108 380KV 480KV 580KV 720KV 直流無刷電機
參數:
電池: 3-6s Lipo
規格:
KV .................................................... ................................. ...... 380
結構................................................. ................................... NP
定子直徑................................................ .................................... 41mm
定子長度................................................ ........................................ 8mm
軸直徑................................................ ....................................... 4.0mm

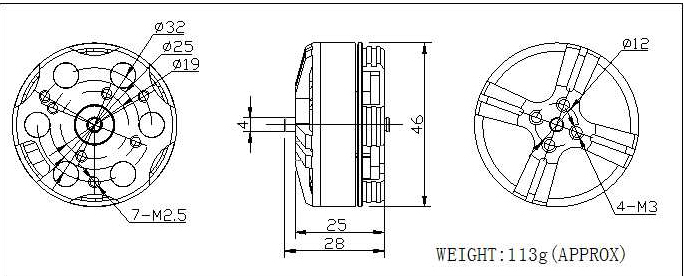

電機尺寸(直徑*長度).................................... .....Φ46x25毫米
重量.................................... ........................................... ... 113克
電池?cái)?shù)量(Lipo).................................... ................................ 3-6S
最大持續電流(A).............................................. ....... 17.2A
最大連續功率(W)..................................................... ...... 381瓦
內部電阻................................................ .................................... 0.193歐姆
規格:
KV .................................................... ................................. ...... 480
組態................................................. ................................... NP
定子直徑................................................ .................................... 41mm
定子長度................................................ .................................. 8mm
軸直徑................................................ ................................... 4.0mm
電機尺寸(直徑*長度).................................... .....Φ46x25毫米
重量.................................... .......................................... 113克
電池?cái)?shù)量(Lipo).................................... .............................. 3-6S
最大持續電流(A).............................................. ....... 27A
最大連續功率(W)..................................................... ...... 599瓦
內部電阻................................................ ..................... 0.125歐姆
規格:
KV ......................................... ............................................. 580
配置................................................ .................................... NP
定子直徑................................................ .................................... 41mm
定子長度................................................ .................................... 8mm
軸直徑................................................ ....................................... 4.0mm
電機尺寸(直徑*長度).................................... .....Φ46x25毫米
重量.................................... .............................................. 113克
電池?cái)?shù)量(Lipo).................................... ................................... 3-6S
最大持續電流(A).............................................. ....... 37A
最大連續功率(W)..................................................... ............... 821W
內部電阻................................................ ..................... 0.098歐姆
規格:
KV .................................................... ................................ ...... 720
配置................................................ .................................... NP
定子直徑................................................ .................................... 41mm
定子長度................................................ .......................................... 8mm
軸直徑................................................ ....................................... 4.0mm
電機尺寸(直徑*長度).................................... .....Φ46x25毫米
重量.................................... ............................................. 113克
電池?cái)?shù)量(Lipo)....................................... ................................ 3-6S
最大持續電流(A)............................................................ ....... 30A
最大連續功率(W)..................................................... ............... 666W
內部電阻................................................ ..................... 0.055歐姆
