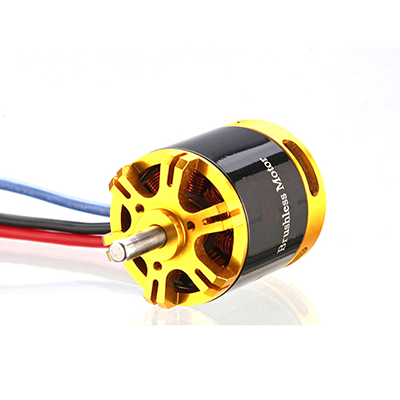

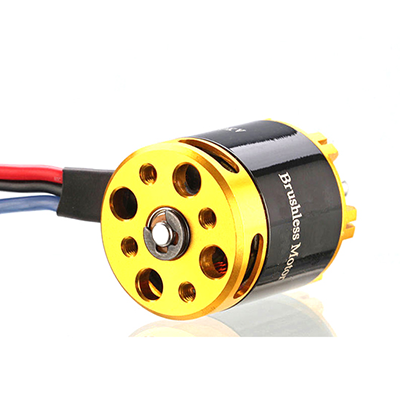

BE2217 2217 1200KV 1500KV長軸無刷電機
規格:
產品名稱:BE2217出軸
KV:1500KV
拉力:1610g
電機尺寸:Φ28×30
電池:3-4s鋰電
規格:
KV .................................................... ................................................... ...... 1500
組態................................................. ................................... NP
定子直徑................................................ .................................... 22mm
定子長度................................................ .......................................... 17mm
軸直徑................................................ ....................................... 4.0mm

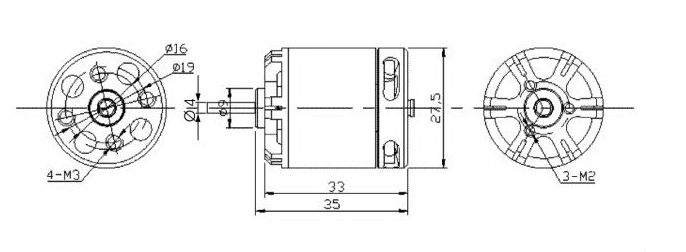

電機尺寸(直徑*長度).................................... .....Φ28×36毫米
重量.................................... ................................................... ... 74克
電池?cái)?shù)量(Lipo).................................... .......................................... 3-4S
最大持續電流(A).............................................. ....... 40A
最大連續功率(W)..................................................... ............... 592W
內部電阻................................................ ..................... 0.041歐姆
規格:
KV .................................................... ................................................... ...... 1200
組態................................................. ................................... NP
定子直徑................................................ .................................... 22mm
定子長度................................................ .......................................... 17mm
軸直徑................................................ ....................................... 4.0mm
電機尺寸(直徑*長度).................................... .....Φ28×36毫米
重量.................................... ................................................... ... 74克
電池?cái)?shù)量(Lipo).................................... .......................................... 3-4S
最大持續電流(A).............................................. ....... 31A
最大連續功率(W)..................................................... ...... 458瓦
內部電阻................................................ ..................... 0.068歐姆
