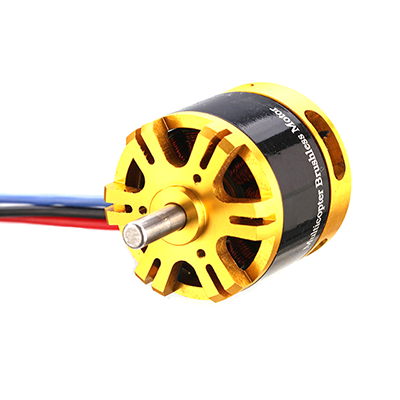

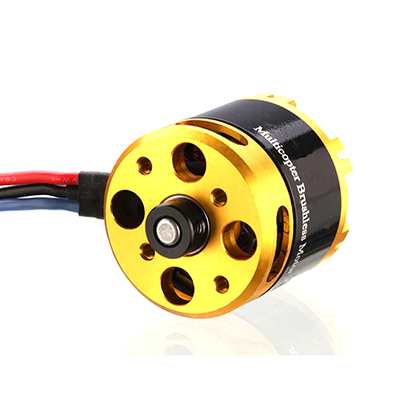

BE2814 2814 910KV 1280KV 1400KV出軸無刷電機
規格:
產品名稱:BE2814長軸
功率:910KV
拉力:1990克
電機尺寸:Φ35×36
電池:3-6s LIPO
KV .................................................... ................................................... ...... 910
組態................................................. ................................... NP
定子直徑................................................ .................................... 28mm
定子長度................................................ .......................................... 14mm
軸直徑................................................ ....................................... 5.0mm

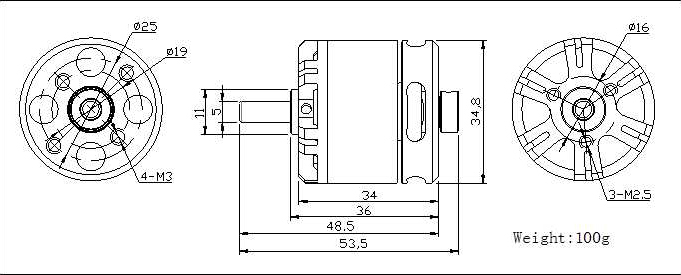

電機尺寸(直徑*長度).................................... .....Φ35×36毫米
重量.................................... ................................................... ...100克
電池?cái)?shù)量(Lipo).................................... .......................................... 3-6S
最大持續電流(A).............................................. ................ 34.2A
最大連續功率(W)..................................................... ...... 759瓦
內部電阻................................................ ..................... 0.061歐姆
規格:
KV .................................................... ................................................... ...... 1280
組態................................................. ................................... NP
定子直徑................................................ .................................... 28mm
定子長度................................................ .......................................... 14mm
軸直徑................................................ ....................................... 5.0mm
電機尺寸(直徑*長度).................................... .....Φ35×36毫米
重量.................................... ................................................... ...100克
電池?cái)?shù)量(Lipo).................................... .......................................... 3-6S
最大持續電流(A).............................................. ....... 38.5A
最大連續功率(W)..................................................... ............... 569W
內部電阻................................................ .................................... 0.022歐姆
規格:
KV .................................................... ................................................... ...... 1400
組態................................................. ................................... NP
定子直徑................................................ .................................... 28mm
定子長度................................................ .......................................... 14mm
軸直徑................................................ ....................................... 5.0mm
電機尺寸(直徑*長度).................................... .....Φ35×36毫米
重量.................................... ................................................... ...100克
電池?cái)?shù)量(Lipo).................................... .......................................... 3-6S
最大持續電流(A).............................................. ....... 42.8A
最大連續功率(W)..................................................... ............... 633W
內部電阻................................................ .................................... 0.015歐姆
