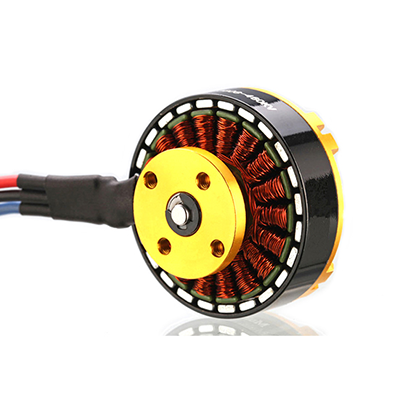

BE3608 3608 460KV 630KV 無刷直流電機
參數:
電池: 3-6s Lipo
規格:
KV .................................................... ................................................... ...... 460
配置................................................ .................................... NP
定子直徑................................................ .................................... 36mm
定子長度................................................ .......................................... 8mm
軸直徑................................................ ....................................... 4.0mm

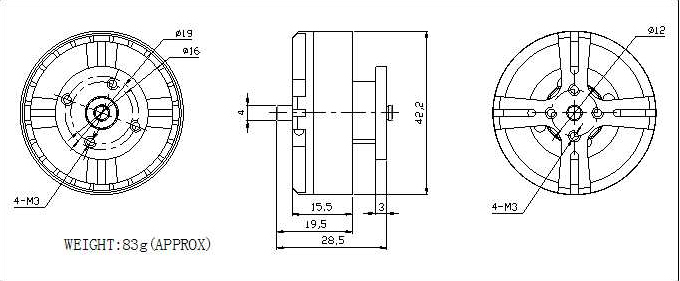

電機尺寸(直徑*長度).................................... .....Φ42×15毫米
重量.................................... ................................................... ... 83克
電池數量(Lipo)..................................... .......................................... 3-6S
最大持續電流(A).............................................. ................ 20.3A
最大連續功率(W)..................................................... ...... 450瓦
內部電阻................................................ ..................... 0.128歐姆
規格:
KV .................................................... ................................................... ...... 630
配置................................................ .................................... NP
定子直徑................................................ .................................... 36mm
定子長度................................................ .......................................... 8mm
軸直徑................................................ ....................................... 4.0mm
電機尺寸(直徑*長度).................................... .....Φ42×15毫米
重量.................................... ................................................... ... 83克
電池數量(Lipo)..................................... .......................................... 3-6S
最大持續電流(A).............................................. ................ 32.1A
最大連續功率(W)..................................................... ...... 700瓦
內部電阻................................................ ..................... 0.076歐姆
