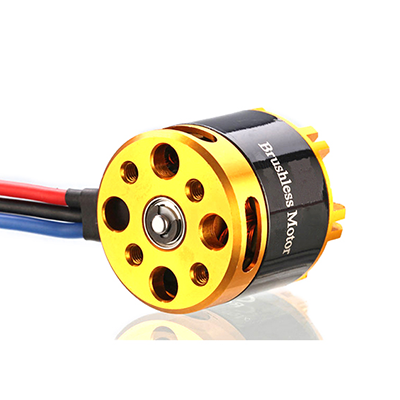

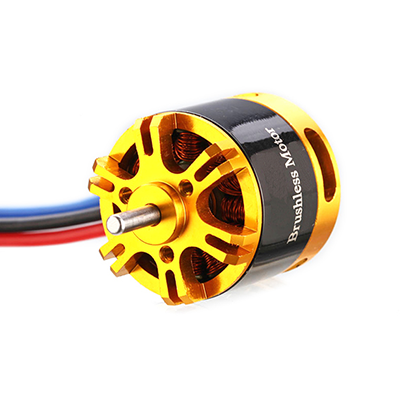

BE2212 1450KV 2300KV長軸無刷電機,用于迷你多旋翼遙控飛機
規格:
產品名稱:BE2212長軸
額定電壓:1450KV
拉力:1000g
電機尺寸:Φ28×30
電池:3-4s鋰電
規格:
KV .................................................... ................................ 1450
組態................................................. ..................................... NP
定子直徑................................................ ....................... 22毫米
定子長度................................................ ...................... 12mm
軸直徑................................................ ........................... 3毫米

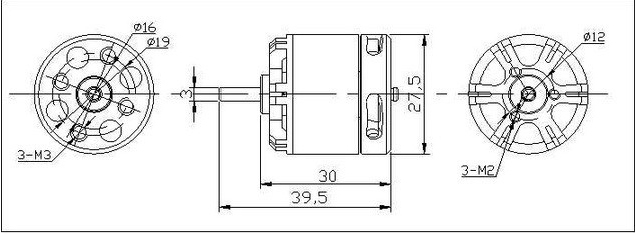

電機尺寸(直徑*長度).................................... .....Φ28×30毫米
重量.................................... ................................... 66克
電池?cái)?shù)量(Lipo).................................... ............................. 3-4S
最大持續電流(A).............................................. .............. 39A
最大連續功率(W)..................................................... ......... 432W
內部電阻.................................................................... .... 0.067歐姆
規格:
KV ...................................................................................... 2300
組態................................................. ..................................... NP
定子直徑................................................ ......................... 22毫米
定子長度................................................ ...................... 12mm
軸直徑................................................ .......................... 3毫米
電機尺寸(直徑*長度)........................................... .....Φ28×30毫米
重量.................................... ................................ 66克
電池?cái)?shù)量(Lipo).................................... ........................... 3-4S
最大持續電流(A).............................................. ............ 39A
最大連續功率(W).......................................................... 288W
內部電阻................................................................. .... 0.032歐姆
